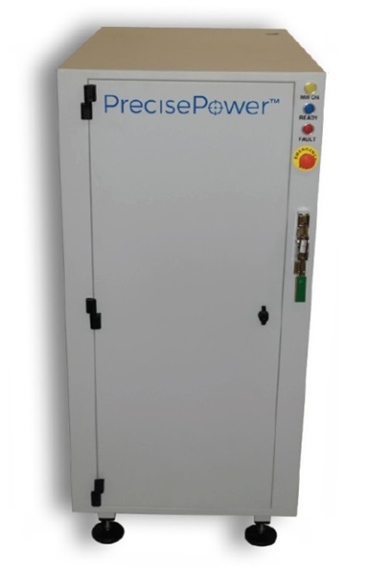

PTS-4 and PTS-8

Insert picture here


The PTS-4 and PTS-8 are S-Band, frequency agile, intelligent, solid-state microwave generators. They are water-cooled and can produce up to 4 and 8 kW of continuous power respectively. The PTS-4 and PTS-8 can come with 1 combined power output in the form of WR340 waveguide flange or four or eight independent 1 kW outputs in the form of 7/16 DIN connectors. The PTS-4 and PTS-8 are connected via USB 2.0 to a Windows PC and the PrecisePowerTM software suite. They can also be controlled via PLC and LabViewTM.


The PTS-4 and PTS-8, as well as all of our other solid-state generators, use our proprietary PrecisePowerTM software suite. PrecisePowerTM is an easy to use, powerful, and feature-rich software suite that allows the PTS systems to do things that are impossible with a magnetron-based, such as rapidly sweeping frequency, pulsing power, plasma generation, phase adjustment and more. It also has inherently high spectral purity.


PTS Datasheet - 4, 8, 16 kW
